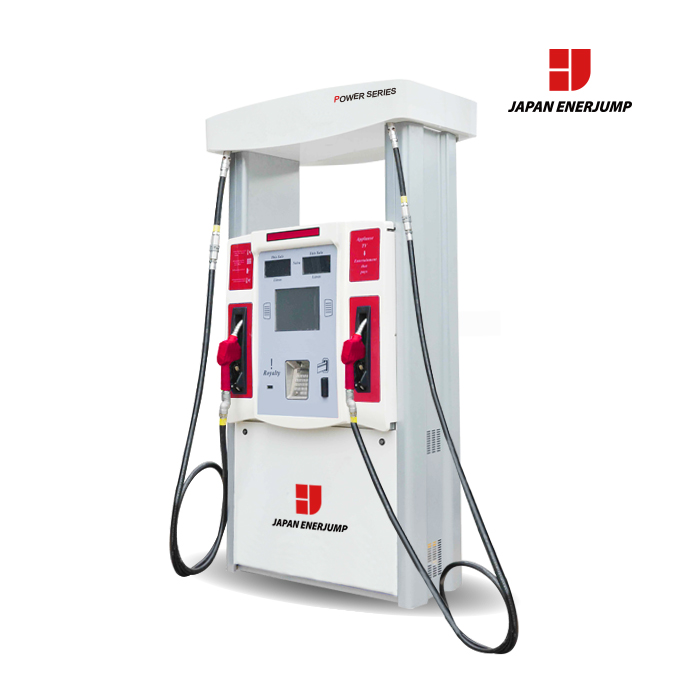

POWER PETROL SUPPLY JAPANESE FUEL DISPENSER

Suction Pump Type                                                                                                            Submersible Turbine Pump (STP)Type

Flow Rate

Normal:50L/min

Depends on the on-site STP capacity

High:70L/min

Ultra-high:90L/min

Pump

Internal silent gear pump with air separator



Suction strainer,Flexible pipe



By-pass valve and Suction check value



Flexible Pipe

Flange type,1-1/2″threaded



Maunal Drive Handle

Provided for maunal operation during power failure



Motor

Three-phase 380V 750W



(Optional)Single-phase 220-240V 750W

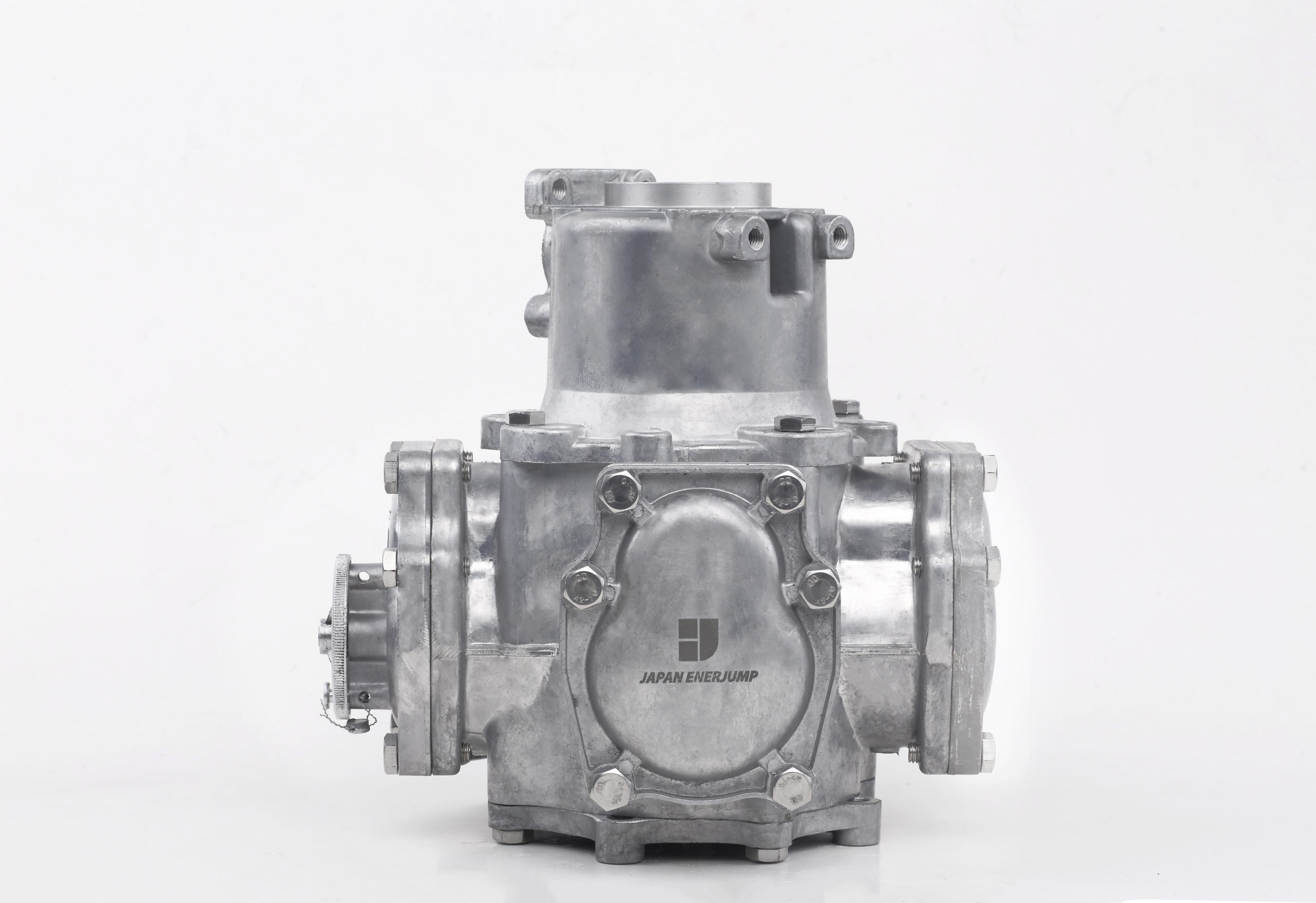

Meter

4-piston positive displacement flowmeter with electionic adjuster

Accuracy

±0.3%



Counter

Type

LCD

Character Color

Black charactors on a blue field with bright LED back l

ight

(Optional)White/Yellow/Orange back light

Display

Sale: 8 digits[0.01~999,999.99]



Liter:8 digits[0.01~999,999.99]

Unit Price:5 digits[0.01~999.99]



Machinery izer

8 digits

Electronic izer

(Optional) 8 digits



Other Funtions

Battery back-up

(Optional) Self-diagnosis



(Optional) Over voltage protector

Reset Device

Automatic reset



Nozzle

Automatic nozzle,Spout outside diameter 21mm,25mm

Hose

Black color hose,Oil resistance type,Inside diameter 1

6mm

(Optional)Red/Yellow/Green color hose

Safty Breakaway Couping

Provided



Wiring

(Optional)Cabtyre cable

Emergency Stop Switch

Provided



POS Interface

(Optional)

Line Fuel Filter

(Optional)



Anti Static Touch Pad

(Optional)

Sight Glass

(Optional)



Receipt Printer

AD Display

(Optional)

(Optional)



LED Message Board Ambient Temperature

Noise

(Optional)

-40 to+ 60℃



≤80dB(A)

Inlet Vacuum

≥0.06MPa
